Mk3 Coolant Fail


  • Please log in to reply
28 replies to this topic

#1 vindi93

vindi93
  • Full Membership
  • 598 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 12 March 2016 - 12:17 AM

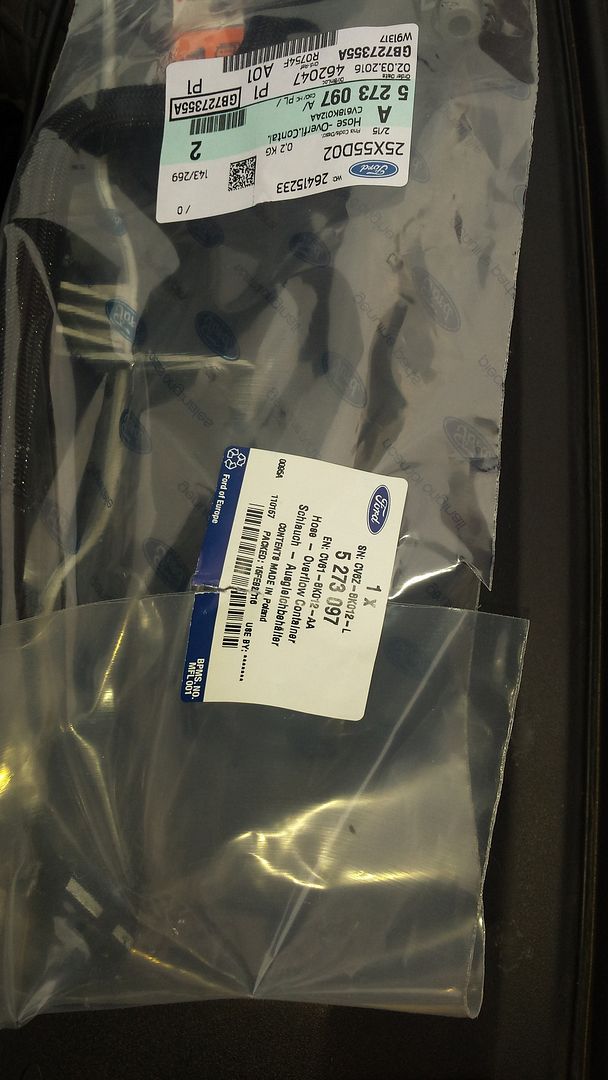

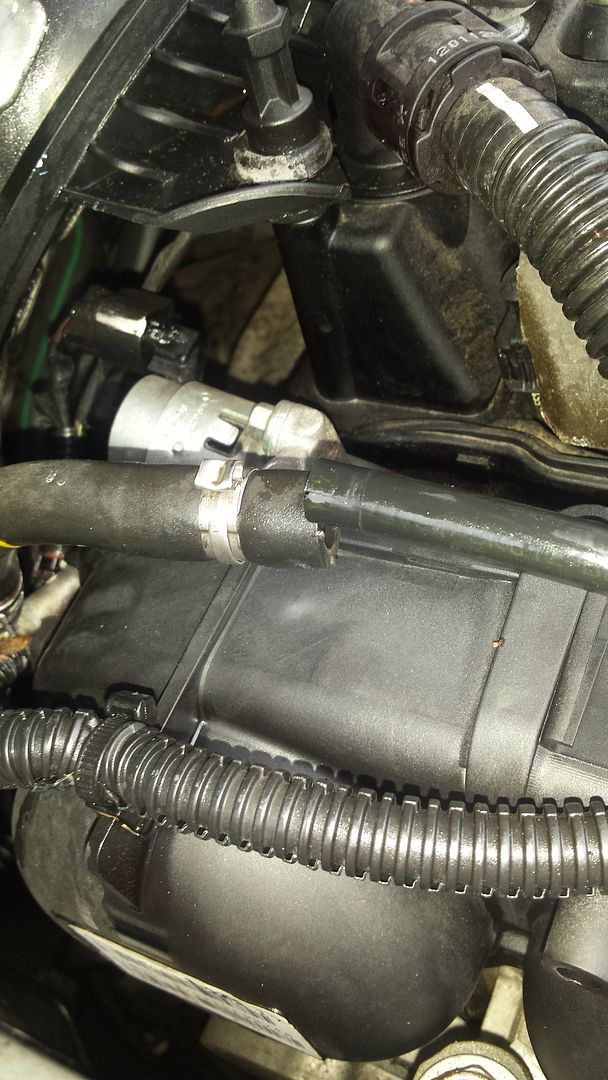

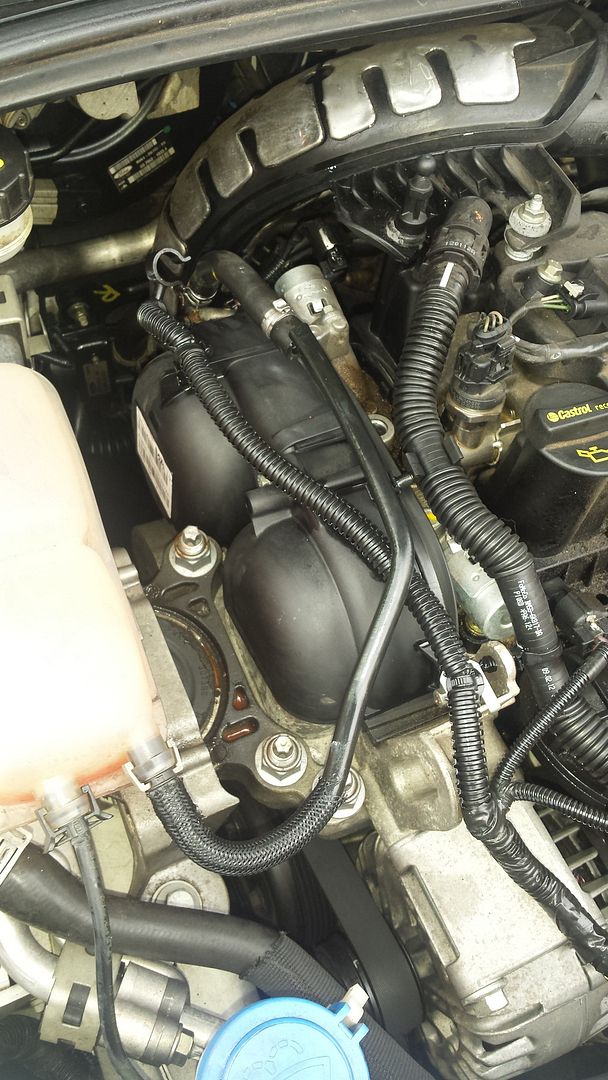

For those that aren't on Facebook I came across an issue with a coolant hose. The hose fits into the top of the expansion bottle. Its made from plastic and became hard and brittle only noticed issue when I was loosing coolant slowly like 500ml over a 2 month period. As it was going for a service I asked them to find out where the leak was. My wife took the car in service was completed, they had located the leak and the part was going to take 5 days to arrive. The wife drove home just round the corner from the house steam everywhere. So I contacted garage to find out which pipe, asked them for the part number. I then rang another dealership I was told we will have it for you latter this afternoon. 15.00 and the part is on the shelf I fitted it in under five minutes. So if anyone has the same pipe as mine I suggest you get it changed I will attach pictures of original pipe and new part number. The new pipe is all rubber no plastic

#2 vindi93

vindi93
  • Full Membership
  • 598 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 12 March 2016 - 12:19 AM

Posted Image

#3 vindi93

vindi93
  • Full Membership
  • 598 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 12 March 2016 - 12:20 AM

Posted Image

#4 vindi93

vindi93
  • Full Membership
  • 598 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 12 March 2016 - 12:21 AM

Posted Image

#5 flatfour

flatfour
  • Full Membership
  • 101 posts
  • LocationSussex
  • Car:1.6 Ecoboost Titanium X

Posted 04 May 2016 - 09:46 PM

I cannot believe how near we were at the weekend to an engine failure on this very same issue. As luck would have it we were putting a parking ticket on the dash of our car when we heard a whoosh/pop noise. Looked under the car and noticed coolant dripping from the under tray. It was the exact problem that the OP had.
( Another 10 seconds and we would have put the ticket in the window,locked the car and gone shopping only to come back oblivious to the fact our car was about to overheat and possibly seize without us knowing due to a major coolant leak.)

The old design of pipe is just ridiculous,a brittle plastic section coupled with a rubber piece. It was always going to fail at the connection!

As mentioned the new  part is now all made of rubber with a solid clamp at the coolant tank end, and is easily fitted in under 5 minutes. I do however believe that Ford should be recalling all owners with this old crappy design of overflow hose fitted to there cars and replace FOC before there is a wave of claims for engine/turbo failures.

Like the OP we have a 1.6 Ecoboost, ( in150 BHP guise ) engine in our Mk3 so am not sure if it affects all petrol models or even some diesels, but please check yours out before it's too late.

#6 flatfour

flatfour
  • Full Membership
  • 101 posts
  • LocationSussex
  • Car:1.6 Ecoboost Titanium X

Posted 22 October 2016 - 04:44 PM

Another heads up guy's.
We have been losing a small amount of coolant from our 1.6 ecoboost over the last few weeks. Changed the expansion bottle cap as I thought that maybe the pressure valve maybe duff. This seemed to improve the situation but not resolve it completely. So today I lifted off the expansion bottle and found that it had some hairline cracks and a small bulge on the underside.
Will be fitting a new one on Monday and will post a picture of the old cracked one for reference.

#7 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 18 April 2018 - 01:20 PM

i know this is an old thread, but as photobucket is not working on here, do you still have the part numbers for the hose and tank?

#8 vindi93

vindi93
  • Full Membership
  • 598 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 19 April 2018 - 08:19 PM

I wouldnt bother take it ford a get the recall done all of it will be replaced at no cost

#9 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 20 April 2018 - 07:46 AM

many thanks, have checked and my car does have an outstanding recall on it, so will get it booked in asap.

#10 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 16 May 2018 - 09:10 AM

goes in for the work to be done monday of next week, will let you all know how it goes, as i believe there might still be an issue with the software uodate required for the new sensor.

#11 Mike11

Mike11

    SMT & Facebook Guru

  • Administrators
  • 13609 posts
  • LocationLive~Manchester Work~Glasgow
  • Car:'54 ST170 & '17 Fiesta 140

Posted 16 May 2018 - 10:27 AM

Fingers crossed it is sprted for you mate. Look forward to hearing the outcome,

#12 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 19 May 2018 - 04:16 PM

Thanks Mike

#13 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 22 May 2018 - 10:00 AM

Well guys, car has been in the shop for just over a day, when leaving the house yesterday morning, i saw a few drops of oil on the road where i park it so rang the garage to ask them to check it over for an oil leak, as i am not the only who parks outside my house,(which is something that really p's me off) turns out its got a cracked head, but is covered by the recall so thats a plus, just waiting now for them to get a new one in stock for me, stay tuned to see how it all goes.

#14 Mike11

Mike11

    SMT & Facebook Guru

  • Administrators
  • 13609 posts
  • LocationLive~Manchester Work~Glasgow
  • Car:'54 ST170 & '17 Fiesta 140

Posted 22 May 2018 - 10:14 AM

At least you have spotted this and are getting it sorted mate, hopefully it’ll be happy motoring from then on.

#15 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 22 May 2018 - 11:45 AM

To true Mike, can not complain, now i dont have to worry about carbon build up behind the valves for a year or so :-D

#16 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 06 June 2018 - 09:12 AM

Quick update, still waiting for new head to come in to stock, just as well i have another car i can use.

#17 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 06 July 2018 - 10:44 AM

Well i got the call yesterday, head will be in stock next Monday, so should get the car back next weekend.

#18 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 01 August 2018 - 10:45 AM

Well got her back Friday 27/07/2018, recall done on the cooling system, software updated, new head and as i was kept waiting for so long all new belts as well, all FOC, they even delivered her back to me so i did not need to go get her, so far very pleased, we let you know how things go.

#19 Mike11

Mike11

    SMT & Facebook Guru

  • Administrators
  • 13609 posts
  • LocationLive~Manchester Work~Glasgow
  • Car:'54 ST170 & '17 Fiesta 140

Posted 01 August 2018 - 11:12 AM

Result. Hopefully a lot of happy motoring now then.

#20 team alchemist 2

team alchemist 2
  • Full Membership
  • 37 posts
  • LocationSouthport
  • Car:2011 1.6 eco boost titanium x

Posted 01 August 2018 - 12:49 PM

Yes indeed, just need to trust her now on a long run(sadly its the way that i am), will build up to that i think, but so far so good. :-D
