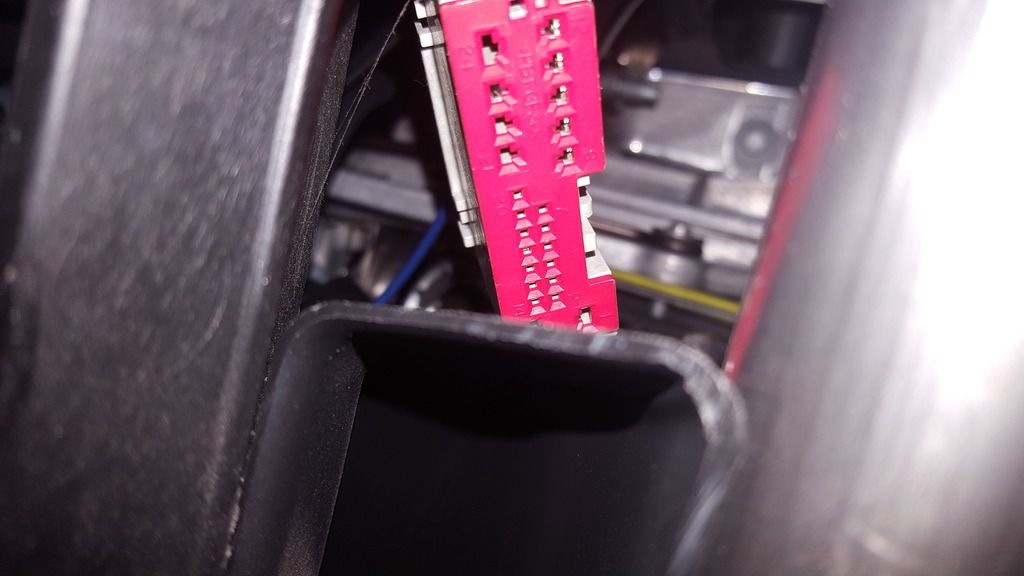

What is this huge connector for connected to nothing and hanging around.

#2 Ldsundance

Ldsundance
  • Full Membership
  • 5033 posts
  • LocationNewcastle Upon tyne
  • Car:mk3 titanium x navigator

Posted 04 June 2017 - 04:40 PM

is this behind the radio? what radio system do you have? might be for the apim module

#3 vindi93

vindi93
  • Full Membership
  • 622 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 05 June 2017 - 01:15 PM

No its floating around by the steering column area

#4 Ldsundance

Ldsundance
  • Full Membership
  • 5033 posts
  • LocationNewcastle Upon tyne
  • Car:mk3 titanium x navigator

Posted 07 June 2017 - 02:51 PM

i will try have a look at mine see if there is a similar connection, i know the bluetooth module is located under the steering wheel

#5 Ldsundance

Ldsundance
  • Full Membership
  • 5033 posts
  • LocationNewcastle Upon tyne
  • Car:mk3 titanium x navigator

Posted 07 June 2017 - 03:15 PM

just found a connector that looks the same in the wiring diagram i have and it looks like it is for the adaptive front headlight unit

#6 vindi93

vindi93
  • Full Membership
  • 622 posts
  • Car:focus mk3 1.6 ecoboost 180bhp

Posted 07 June 2017 - 09:07 PM

I have bluetooth fitted as standard which works although i dont use the the voice activating thing. I dont have adaptive lights though. You have a wiring diagram is it the one where the one page looks like the outline of a car?

#7 Ldsundance

Ldsundance
  • Full Membership
  • 5033 posts
  • LocationNewcastle Upon tyne
  • Car:mk3 titanium x navigator

Posted 08 June 2017 - 12:31 AM

it could be the same one mine is a 139 page pdf
